Order(MOQ):
1Payment:
T/TProduct Origin:
Hefei City, Anhui Province, ChinaColor:
SilverShipping Port:
Shanghai, Ningbo, GuangzhouLead Time：

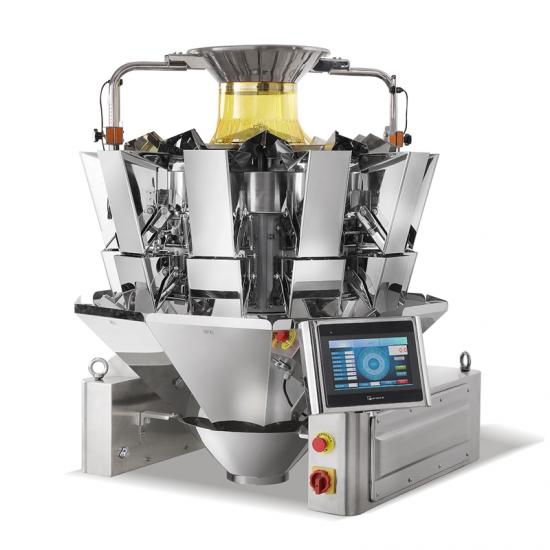

Ready In StockUUPAC 10 Head Automatic Combination Multihead Weigher
|| Production Description
UUPAC automactic 10 head multihead weigher is suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.
The multihead weighing machine includes economical combination scales that won’t compromise accuracy. Featuring a smaller footprint that has been constructed to withstand aggressive user handling and harsh environments, these multihead weighers are tough, accurate, highly efficient, and easy to operate.
|| Features of UUPAC Multihead Weigher
1. Original program can be restored.
2. IP65 water prove, easy cleaning and maintenance with clean function, all hoppers can stay open.
3. Piece counting function.
4. Unqualified weight reject function.
5. Step motor angle can be set according to different product.
6. 99 program can be preset.
7. Modular electronic system makes function expanding and maintenance easier and at lowest cost.
8. Professiona A/D card with high accuracy and stability. Interchange is available.
9. HMI program with different authority management, can be upgraded by U-disk.
|| Machine Details
|| Detailed Data
| Model | TY-A-M/P10-5/8 | TY-A-M/P10-16/25 |
| Hopper Volume | 0.5L/0.8L | 1.6L/2.5L |
| Weighing Range(1 hopper) | 5-200g | 10-1000g |
| Accuracy | ±0.1g | |
| Min Scale Interval | 0.1g | |
| Max Weighing Speed | 120p/M | |
| Control System | MCU/Siemens PLC | |
| HMI | 7''/10'' Control Screen | |
| Power Supply | 220V, 50/60Hz | |
| Packing Diamension | 1,370(L)*1,060(W)*1105(H)mm | 1140(L)*1140(W)*1853(H)mm |
| Gross Weight | 220kg | 385kg |
|| Videos of Automatic Multihead Weigher
Widely used in weighing of granular, block and sheet materials such as food, medicine, hardware, chemicals, plastics, etc.
It is widely used in weighing of granular, block and sheet materials such as food, medicine, hardware, chemicals, plastics, etc.
Applicable for lift-conveying of granular products, such as potato chips, candies, nuts, frozen food, green vegetable, chemical medicine, etc.
Applicable for lift-conveying of solid, granular, small-sized products, and more often for secondary lifting solution due to field space limitation.
Our high stable dimple 14 head weigher is applicable for quantitative weighing of irregular and poorly fluid viscous material such as capers, fresh meat, mustard, pickles, powdered sugar and small fish, etc.
The products elevated vary from pet food, puffed food, fodder, candies, dried fruit, health food, grains, chemicals, hardware, etc.
It is used to check if the finished products are within the preset target weight and reject the non-standard products by automatic checking device.
Applicable for weighing of granular, powdered or other types of products with uniformed-shape, such as sugar, rice, chicken essence seasoning , seeds, salt, powdered milk, coffee, seasoning, etc.
