Our Automatic Case Erector Machine (also known as box erecting machine) is a high-efficiency packaging solution for automatic carton opening, bottom folding and tape sealing, ideal for e-commerce warehouses and logistics centers.
Order(MOQ):
1Product Origin:
Hefei City, Anhui Province, ChinaColor:
SilverShipping Port:
Shanghai, Ningbo, GuangzhouLead Time：
Ready In StockUUPAC Automatic Case Erector Machine
|| Product Description

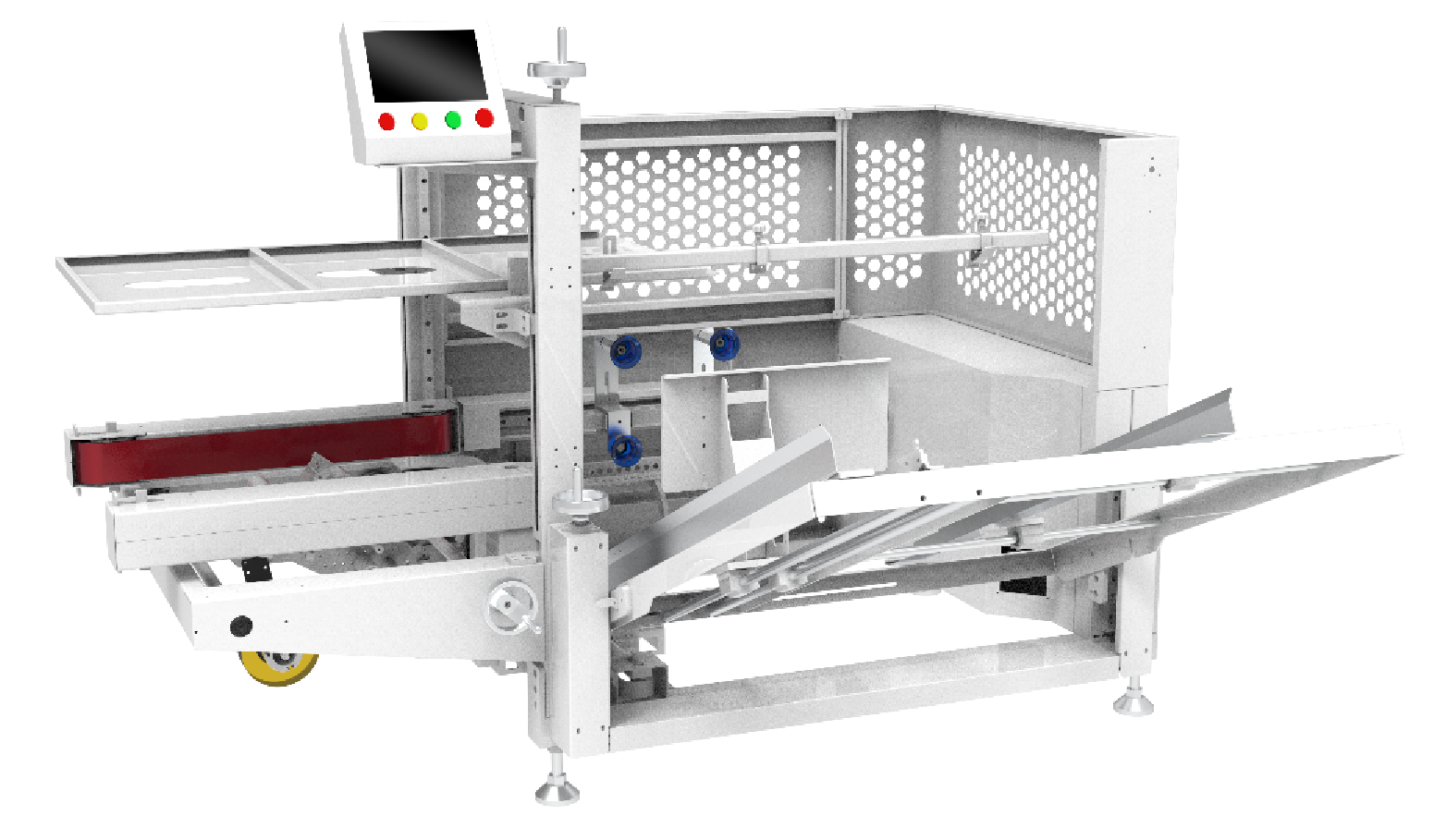

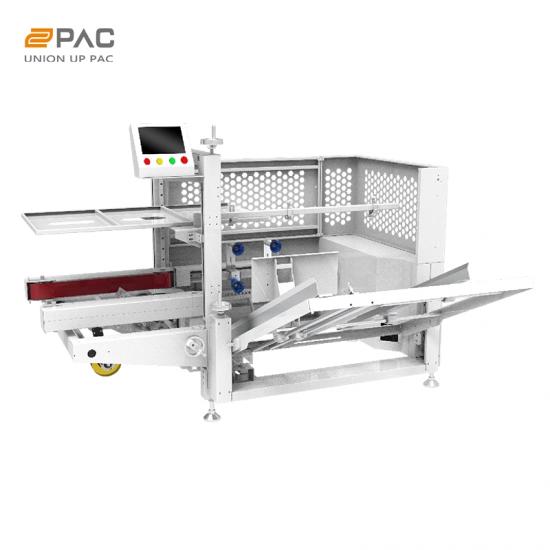

Our UUPAC Automatic Case Erector Machine is a high-efficiency packaging solution for automatic carton opening, bottom folding and tape sealing. It supports various carton sizes and can be integrated into a complete production line.
|| Features of UUPAC Case Erector Machine
1. High Efficiency & Stability: Advanced servo system enables 5-35 boxes/min high-speed operation with stable performance.
2. Intelligent Grasping: Suction cup robotic arms automatically grasp cartons, no manual intervention needed.
3. Wide Adaptability: Fits multiple carton sizes, meeting diverse packaging needs across industries.
4. Easy Operation: Simple input of carton dimensions for automatic adjustment, no complex setup.
5. Cost Saving: Replaces manual labor to reduce labor and production costs effectively.
6. Safe & Reliable: Seamless line integration, emergency stop button, and easy maintenance.

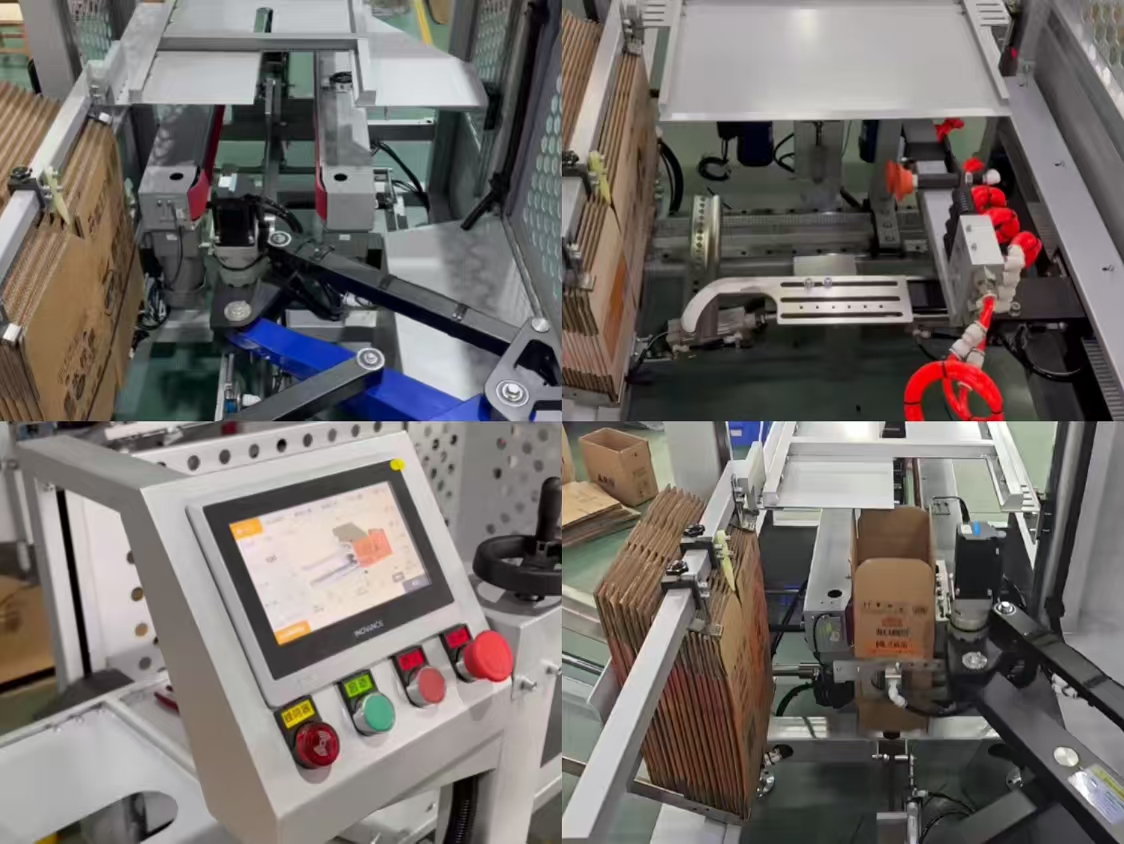

|| Machine Details
|| Technical Specifications
| Model | TY-500 | TY-650 |
| Speed (boxes/min) | 5-15 | 5-15 |
| Box Size Range (mm) |
280 - 500（L） |
280 - 650（L） 150 - 500（W） 150 - 500（H） |
| Rated Power (kW) |
1.0 |
1.0 |
| Air Source (MPa) |
0.6 |
0.6 |
| Net Weight (Kg) |
350 |
550 |
| Overall Dimensions (L×W×H, mm) |
2000 × 1900 × 1400 |
2300 × 2050 × 1550 |
| Power Supply |
220V 50Hz |
220V 50Hz |
| Applicable Adhesive Tape (mm) |
≤ 60 |
≤ 60 |
Automatic folding and sealing machine, automatically fold the lid, automatically paste the tape up and down, without manual work; using instant tape carton sealing, the sealing effect is smooth and beautiful, and the sealing is firm.
Our Automatic Case Erector Machine (also known as box erecting machine) is a high-efficiency packaging solution for automatic carton opening, bottom folding and tape sealing, ideal for e-commerce warehouses and logistics centers.
This vertical packaging machine can be used to pack various solid and granule material: such as beans, puffed food, pet food, potato chips, dates, pistachios, rice, raisins, candy, peanuts, jelly, candied fruit, walnut, almonds, meat balls, sugar, salt, biscuits, frozen dumplings, chocolate etc.
VFFS vertical form fill seal packaging machine uses a roll of film to automatically form several types of pouches, such as pillow bag, gusset bag, hole punching bag, quad seal bag.
Mainly used to undertake packaged products and convey them to weight checking / metal detecting equipment or packing platform.
Our Automatic Case Erector Machine (also known as box erecting machine) is a high-efficiency packaging solution for automatic carton opening, bottom folding and tape sealing, ideal for e-commerce warehouses and logistics centers.
It is used to check if the finished products are within the preset target weight and reject the non-standard products by automatic checking device.
Suitable for weighing leisure foods such as candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts,raisins etc. and big shell nuts, hardwares, dried fruits, frozen foods, snack foods, meatballs and so on.
