Automatic Weighing Packaging Line
Products
Home Detection Equipment Weight Sorting Machine

Carousel Multi-Weight Sorting Machine

High Speed Carousel Multi-Weight Sorting Machine

Carousel Multi-Weight Sorting Machine

Weight sorting machine sort products with different levels of weight into different areas, mainly for the chicken wings, chicken leg weight classification, crab, lobster, sea cucumber, abalone, apple, mango, etc..

  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Hefei City, Anhui Province, China
  • Color:

    Silver
  • Shipping Port:

    Shanghai, Ningbo, Guangzhou
  • Lead Time:

    Ready In Stock

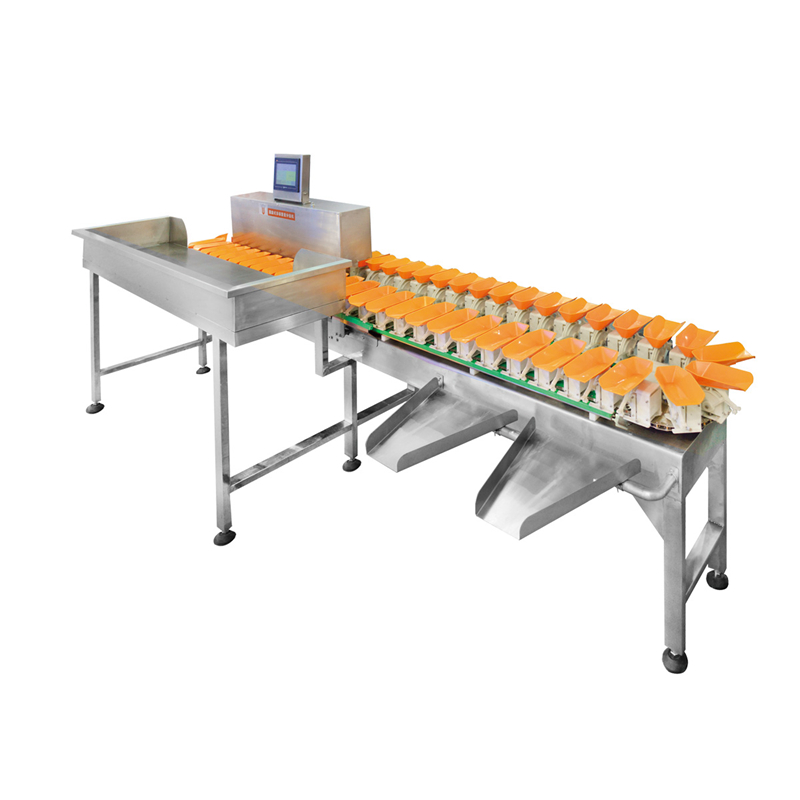

UUPAC High Speed Multi- Weight Sorting Machine

Different Grade multi-weight sorting machine

|| Production Description

High Speed Multi- Weight Sorting Machine Applicable for multi-weight sorting of poultry, marine as well as agricultural products, such as chicken legs / wings / meat, trepang, abalone, small fish, shrimp, Chinese medical herbs, fruits and many other products with the size within 12*18CM and the weight within 500g (1 ~ 14 grade sorting), regardless of their shape.





Multi-weight sorter machine



|| Features of UUPAC High Speed Multi- Weight Sorting Machine

1. Reporting Function: Built-in report statistics to generate Excel format; able to automatically generate several kinds of live data reports to make statistics on single or total weight of the discharge hopper to control production status at all times.

2. USB can store more than one year of data.

3. Interface Function: Reserved standard interface for easy data management. Connecting with PC or other smart communication tools.

4. Centralized Control: One PC / HMI can control multiple sorting machines.

5. Water Proof: Waterproof design for anti-erosion from seawater.

6. Highly Efficient and Economic: Multi-sorting and automatic weight checking for labor cost saving and efficiency improving.

7. Versatility: Standard machine structure and HMI program design can accomplish weight sorting with wide range of products.

8. Easy to Switch: Able to store multi formula to switch to different product specifications.

9. Easy Panel Operation: 7” color touch screen with smart and humanized design.

10. Engineering Plastic Net Chain: Largely improve conveying lifetime, free of maintenance.

11. Speed Adjusting: Frequency conversion control motor to adjust the speed as required.

12. High Speed & Accuracy: Equipped with high accuracy digital load cell for quick and accurate weight sorting.

13. Customization: Sorting grade can be customized per customer’s requirement.

14. Zero Tracking: Manual or automatic reset as well as dynamic zero tracking.



|| Machine Details

automatic circular multi-weight sorter machine



|| Detailed Data



Model

TY-CW-YP

Weighing Range

≤500g

Sorting Accuracy

±0.3g~±3g

Sorting Speed

300 times/min

HMI

7” color touch screen

Product Size

180(L) *120(W)mm

Control System

High-speed A/D controller

Pre-set Prod. No.

99

Power Supply

AC220V±10% 50HZ/60HZ, 0.6KW

Machine Dimension

3,592(L)*1,174(W)*1,508(H)mm

Reject Device

Overturned device

Working Condition

Temperature: 0℃~40℃; Humidity: 30%~95%



|| Videos of Multi- Weight Sorting Machine
