Suitable for seafood, poultry, livestock, agricultural, and frozen processed products, such as shrimp, abalone, chicken wings, chicken feet, squid, crayfish, etc.
Order(MOQ):
1Payment:
T/TProduct Origin:
Hefei City, Anhui Province, ChinaColor:
SilverShipping Port:
Shanghai, Ningbo, GuangzhouLead Time：

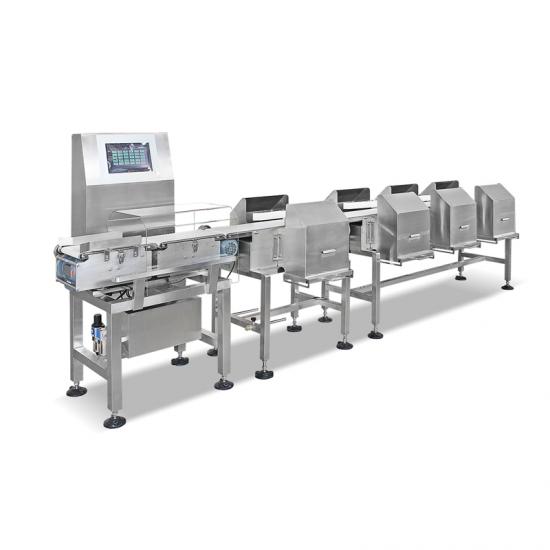

Ready In StockUUPAC High Capacity Weight Sorting Machine
|| Production Description
High Capacity Weight Sorting Machine Applicable for multi-weight sorting of marine as well as agricultural products, such as trepang, abalone, shark fin, hippocampus, jellyfish, dried octopus and squid, fish maw, etc. as well as fruits, vegetables, melons, nuts, spices, pastries, frozen food, ham, etc.
|| Features of Weight Sorting Machine
1. Reporting Function: Built-in report statistics to generate Excel format; able to automatically generate several kinds of live data reports to make statistics on single or total weight of the discharge hopper to control production status at all times. USB can store more than one year of data.
2. Interface Function: Reserved standard interface for easy data management. Connecting with PC or other smart communication tools.
3. Centralized Control: One PC / HMI can control multiple sorting machines.
4. Highly Efficient and Economic: Multi-sorting and automatic weight checking for labor cost saving and efficiency improving.
5. Versatility: Standard machine structure and HMI program design can accomplish weight sorting with wide range of products.
6. Easy to Switch: Able to store multi formula to switch to different product specifications.
7. Easy Panel Operation: 7” color touch screen with smart and humanized design.
8. Easy Maintenance: Conveying belts is removable for easy maintenance and cleaning.
9. Augmentation: More equipment can be added to the machine at customer’s demand.
10. Speed Adjusting: Frequency conversion control motor to adjust the speed as required.
11. High Speed & Accuracy: Equipped with high accuracy digital load cell for quick and accurate weight sorting.
12. Customization: Sorting grade can be customized per customer’s requirement.
13. Zero Tracking: Manual or automatic reset as well as dynamic zero tracking.
|| Machine Details
|| Detailed Data
|
Model |
TY-1A-CW1000F8 |
|
Weighing Range |
10g~1,000g |
|
Sorting Accuracy |
±0.3g |
|
Sorting Speed |
160 times/min |
|
HMI |
7” color touch screen |
|
Product Size |
≤300(L)*210(W)mm |
|
Control System |
High-speed A/D controller |
|
Pre-set Prod. No. |
99 |
|
Power Supply |
AC220V±10% 50HZ/60HZ, 1KW |
|
Machine Size |
3,080(L)*898(W)*1489(H)mm |
|
Reject Device |
Pusher |
|
Working Condition |
Temperature: 0℃~40℃; Humidity: 30%~95% |
|| Videos of Weight Sorting Machine
Weight sorting machine sort products with different levels of weight into different areas, mainly for the chicken wings, chicken leg weight classification, crab, lobster, sea cucumber, abalone, apple, mango, etc..
Applicable for detecting metal in aquatic products, meat and poultry, pickled products, pasta, dried fruits, vegetables, industrial chemicals, pharmaceuticals, cosmetics and toys.
Suitable for weighing a single material with high-speed or various mixing products, such as oatmeal, mixing nuts etc.
Our high accuracy linear weigher is applicable for weighing various granular and powdery materials, such as sugar, rice, chicken essence, seeds, salt, coffee powder, seasoning powder and other materials.
This vertical packaging machine can be used to pack various solid and granule material: such as beans, puffed food, pet food, potato chips, dates, pistachios, rice, raisins, candy, peanuts, jelly, candied fruit, walnut, almonds, meat balls, sugar, salt, biscuits, frozen dumplings, chocolate etc.
Applicable for weighing of different kinds of granular, powdered products such as sugar, rice, chicken essence, seeds, salt, powdered milk / coffee / seasoning, etc.
It is widely used in many industries such as electronics, pharmacy, food, beverage, health products, cosmetics, light industrial and agricultural products, etc. Not only is it used to check if a single finished product is within the preset target weight but also to check missing parts of a full carton (missing bottles, boxes, pieces, bags, cans, etc.)
This vertical packaging machine can be used to pack various solid and granule material: such as beans, puffed food, pet food, potato chips, dates, pistachios, rice, raisins, candy, peanuts, jelly, candied fruit, walnut, almonds, meat balls, sugar, salt, biscuits, frozen dumplings, chocolate etc.
