Home Linear Weigher 1 Head Linear Weigher

Single Head 8.0L Linear Weigher

High stable linear weigher

Single Head 8.0L Linear Weigher

Applicable for weighing of powdered or regular small granular products, such as sugar, salt, seed, rice, sesame, MSG, chicken essence seasoning, powdered milk, powdered coffee, seasoning powder, etc.

  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Hefei City, Anhui Province, China
  • Color:

    Silver
  • Shipping Port:

    Shanghai, Ningbo, Guangzhou
  • Lead Time:

    Ready In Stock

UUPAC Single Head 8.0L Linear Weigher



 Single head 8.0L linear weigher



|| Production Description

UUPAC Single head linear weigher  are user-friendly semi-automatic linear filling and weighing systems. They are ideal for repetitive filling regular shaped dried foodstuffs such as tea, sugar, coffee powder or beans, seeds, nuts, rice, pasta, milk powders, spices and confectionery etc.

They are constructed from robust food grade superior quality stainless steel and the semi-automatic operation hygienically fills bag at impressive speeds with minimum manhandling.





|| Features of UUPAC Linear Weigher

1. 7” color touch screen, multi-language selection and software upgraded through USB.

2. Large volume hopper for expanded weighing range.

3. SUS304 for the whole machine frame (SUS316 for option). IP 65 dust and water proof design.

4. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.

5. Auto amplitude adjustment for easy operation.

6. Step motor drives the opening and closing of the hoppers for faster and more stable operation.

7. Modular control system for friendly maintenance and cost-saving.

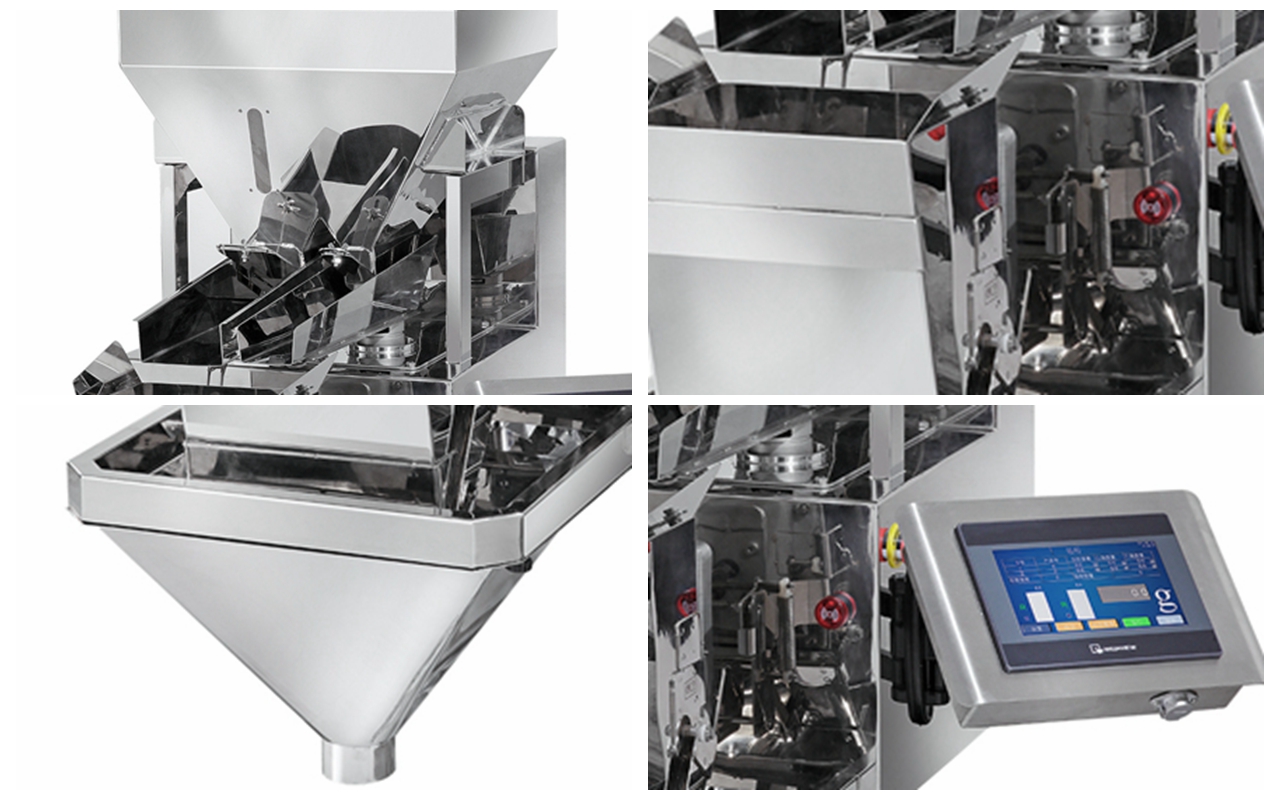

|| Machine Details



|| Detailed Data

Model

TY-A-MX1-80

Max. Weighing

1,000g

Accuracy

x (0.5)

Min. Scale Interval

0.1g

Max. Speed

10-15 WPM

Hopper Volume

8.0L

Control System

MCU

HMI

7” color touch screen

Power Supply

AC220V/110V ±10% 50HZ/60HZ, 0.8KW

Packing Dimension

1,000(L)*600(W)*985(H)mm

Net Weight

80kg

Gross Weight

110kg



|| Videos of UUPAC Linear Weigher

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
  • Factory price linear weigher
    Single Head 3.0L Linear Weigher

    Applicable for weighing of fresh-cut green vegetables, onions, processed potatoes, sliced carrots, turnips, pickled vegetables, celeries, sliced sausages, fresh meat, cooked pasta, oily beans and many other oily, sticky and fresh food with the same size and weight.

  • High Speed Carousel Multi-Weight Sorting Machine
    Carousel Multi-Weight Sorting Machine

    Weight sorting machine sort products with different levels of weight into different areas, mainly for the chicken wings, chicken leg weight classification, crab, lobster, sea cucumber, abalone, apple, mango, etc..

  • 14 Head Combination Weigher
    High Stable Dimple 14 Head Weigher for Sticky Products

    Our high stable dimple 14 head weigher is applicable for quantitative weighing of irregular and poorly fluid viscous material such as capers, fresh meat, mustard, pickles, powdered sugar and small fish, etc.

  • Factory price linear weigher
    Single Head 3.0L Linear Weigher

    Applicable for weighing of fresh-cut green vegetables, onions, processed potatoes, sliced carrots, turnips, pickled vegetables, celeries, sliced sausages, fresh meat, cooked pasta, oily beans and many other oily, sticky and fresh food with the same size and weight.

  • Stainless steel finished product conveyor
    Long Lifespan Finished Product Conveyor

    Mainly used to undertake packaged products and convey them to weight checking / metal detecting equipment or packing platform.

  • case erector, box erecting machine, carton erecting machine

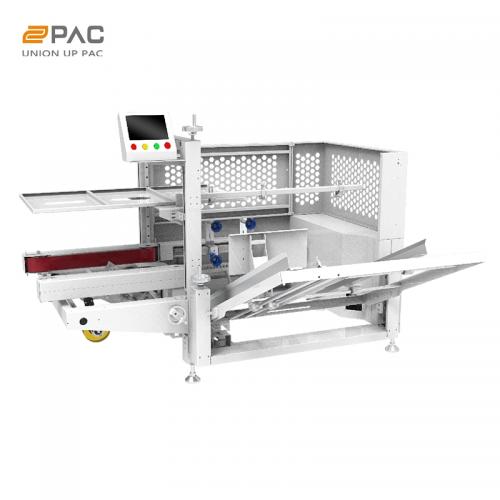

    Automatic Case Erector Machine
