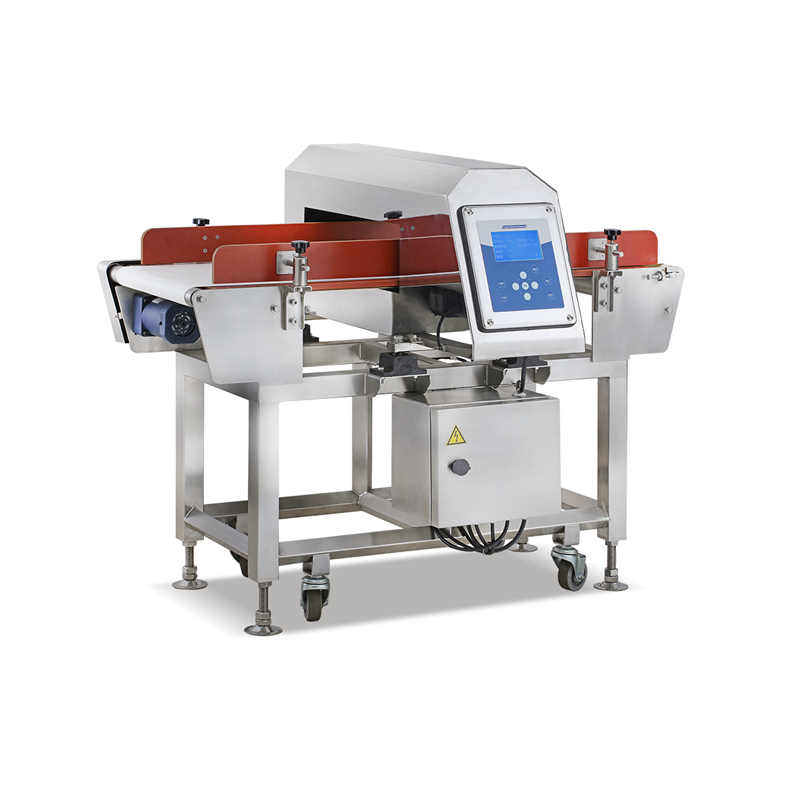

High Precision Horizontal Conveyor Metal Detector

High Accuracy Metal Detector

High Precision Horizontal Conveyor Metal Detector

Applicable for detecting metal in aquatic products, meat and poultry, pickled products, pasta, dried fruits, vegetables, industrial chemicals, pharmaceuticals, cosmetics and toys.

  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Hefei City, Anhui Province, China
  • Color:

    Silver
  • Shipping Port:

    Shanghai, Ningbo, Guangzhou
  • Lead Time:

    Ready In Stock

UUPAC High Precision Horizontal Conveying Metal Detector

Hot Selling Metal Detector

|| Production Description

High Precision Horizontal Conveying Metal Detector is pleased to offer several metal detection systems to protect your products. Our metal detector reliably detects all metal contamination and offers protection against machine damage, production downtime, unhappy customers, and product recalls.

Food metal detector



|| Features of UUPAC Horizontal Conveying Metal Detector

1. High detecting sensitivity.

2. Able to store 100 kinds of products.

3. Data supporting interface equipped with USB and Ethernet interface.

4. All stainless-steel material to meet HACCP requirement for food machinery

5. Transport mechanism easy to dismantle for routine maintenance and cleaning.



|| Machine Details

Metal Detector Details



|| Detailed Data

Model

TYA-MD3011/

3015/3018/3021

TYA-MD4011/

4015/4018/4021

TYA-MD5018/

5023/5028

TYA-MD6028

Body Material

SUS304

HMI

7” color touch screen

Detected Product Width

≤300mm

≤400mm

≤500mm

≤600mm

Detected Product Height

≤80~180mm

≤80~180mm

≤150~250mm

≤250mm

Detecting Sensitivity

(idle status)

Fe≥Φ0.5~0.8mm

SUS304≥Φ1.0~1.5mm

Fe≥Φ0.7~0.8mm

SUS304≥Φ1.2~1.5mm

Fe≥Φ0.7~1.2mm

SUS304≥Φ1.5~2.0mm

Fe≥Φ1.5mm

SUS304≥Φ2.0mm

Reject Device

flash light alarm; pneumatic pusher / sliding (optional)



|| Videos of Metal Detector
